The allsort® XRT sorter was developed based on over 30 years of experience in mining and minerals processing industry. allsort® occupies a central position in the satellite plant system. The advanced system software not only performs dry sorting using X-ray transmission but also collects valuable process data that is used for controlling and adjusting the overall process.

  • Offers complete processing solutions from a single source
  • Sensor-based sorting improves the availability and sustainability of resources
  • Increases the overall profitability of mining projects
  • Energy and water consumption, as well as environmental impact, are significantly reduced
  • No Sludge handling and no sludge disposal
  • Smaller footprint due to the elimination of process water and its treatment

Sustainable Processing with allsort®

With state-of-the-art X-ray technology, allsort® can separate a wide variety of materials in an environmentally friendly way and process them dry. An X-ray transmission sensor (XRT) detects density differences within the material based on X-ray absorption. Absorption depends on atomic weight and particle thickness. High absorption occurs in elements with high atomic order, while low absorption corresponds to elements with low atomic order. Based on this data, allsort® classifies and sorts each individual particle according to customer-specified criteria.

Thanks to sensor-based sorting, resource utilization can be improved, and energy and water consumption can be significantly reduced. The investment and operating costs are considerably lower than those of wet processing due to the elimination of water handling. Additionally, relative to its sorting capacity, allsort® has a comparatively small footprint overall.

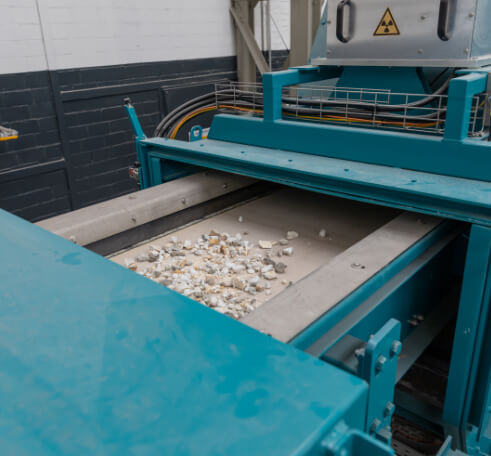

The Advantages of the Technology

Whether it’s ores, coal, or recycling materials: with the allsort® XRT sorter, all applications in dry processing are possible. The only requirement is a measurable density difference between the waste product and the desired material. The X-ray technology allows for an internal inspection of the particles, even with heavily contaminated surfaces—without the use of any water.

  • Satellite technology with a complete solution from a single source
  • Efficient sorting process using X-ray technology
  • Wide particle size range and high throughput
  • No wastewater or sludge treatment
  • German engineering and German quality manufacturing guarantee durability and availability
  • A well-trained service team for the entire process

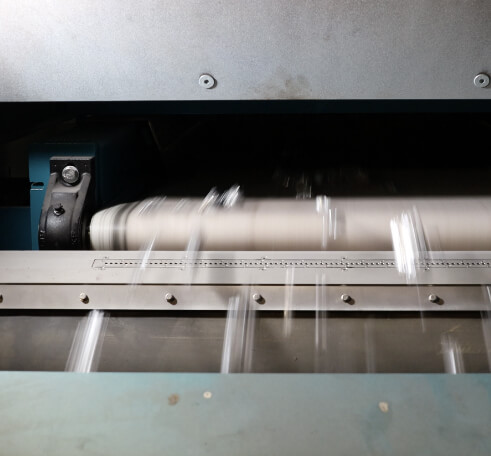

Technical Specifications

The allsort® XRT sorter already has a wide particle size range. In combination with the allair® air jig, allmineral is the only supplier on the market that covers the complete particle size range from 0 to 120 mm in dry processing. allsort® is suitable for sorting all materials where the substances to be separated as per their difference in density.

  • Applications: Ores, coal, recycling materials
  • Particle sizes: 10 to 120 mm
  • Throughput capacity: 75 to 150 t/h per machine unit
  • Conveyor belt speed: 3 m/sec
  • Compact design with water- and dust-proof construction
  • Camera type: DE-XRT Camera
  • Ejection system: Compressed air valves (Number: 96-192 / Spacing: 6.25 mm)

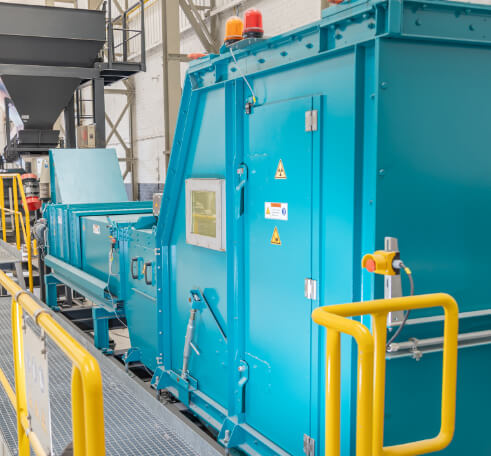

For Flexible Use: allsort®

The allsort® XRT sorter offers the capabilities of a mobile and modular processing plant: it can be integrated into the system quickly and used to optimize overall processes. With "Plug and Play," allsort® is rapidly installed and, thanks to its compact size, requires minimal space.
